zondag 7 juni 2015

CQ WW WPX CW contest 2015 with an indoor 15" Cylinder dipole

Monster Cylinder Dipole PA1B
I had great fun in 56 QSO's with my
 Mønster  Cylinder Dipole in the CQ WW WPX 2015.  (Click on the picture to enlarge)

The monster antenna consist of  two
 Mønster Energy Drink Cans
and a coil of 80 mm with 8 turns.
I determined the number of turns of the coil by experimenting.

This very short antenna has a wingspan of 15" or 38cm. "Indoor" results are best if you place the antenna as high as possible.

By making QSO's in a major contest, I could discover the properties of this very short antenna. All QSO's are made with CW and with S&P (Search and Pounce). As a low power enthusiast, I will reduce my power when the received signals get stronger.

On Saturday I worked with the Monster Dipole in  the shack, on a height of 4 meters above the ground. On Sunday morning I placed the antenna in the dormer window in the attic, on a height of 7 meters above the ground.

On Saturday I started on 14 MHz. Between QSO #3 and #4 we went to a fair. After working 6 stations all on 14 MHz, I went to 21 MHz.
The 15 meter band was open, so I made all QSO's on this band from 12 UTC until 19 UTC. From time to time I went back to 14 MHz, but with NO success.  After 19 UTC I could make just one QSO on 20 mtrs. After this QSO an other 16 QSO's were made on 15 m.
After 19 UTC the signal were stronger, so I could reduce my power. I  could make QRPp QSO's with 720 mW, 360 mW and even one QSO with 72 mW.

Miles per Watt
As a low power enthusiast, I reduce my power before answering a CQ, when the S-meter goes up.
It was great fun to make a QSO with 72 mW with YT6A, over a distance of 851 miles.
This QSO is good for 11820 Miles per Watt.
Thanks to Ranko with his sensitive station with Excellent Ears. FB.

On Sunday morning I had time until 10 UTC. The first QSO was made with the Island of Man on 7 MHz. To work on 7 MHz I tune the SWR for 1:1. After breakfast I decided to move the Monster Cylinder Dipole to the attic, just to test whether I could make more QSO's on 14 MHz.The test is not conclusive, because I made the same number of QSO's at the same time as on Saturday.
Between 10 and 18 UTC we visited two birthdays. after 18 UTC I made a few QSO's.

Does it work?
The Cylinder Dipole definitely works.
Because I had limited time on Sunday afternoon, I can not tell whether the antenna works better on the attic on 14 MHz. But I can tell you that it works.

In the interesting table below I show the QSO's from hour to hour.
Please notice the peak in the propagation on Saterday from 19-21 UTC.
I worked 7 stations with  360 mW. But that was not all.
The QSO with 72 mW is years later, still the QSO with the lowest power on the Monster Dipole. Hi.

I am very pleased with results of the Monster Dipole.

CQ WPX CW 2015 with an indoor 15" Cylinder dipole PA1B

When did you make QRP QSO's with 20 DXCC counties on a indoor antenna with a wingspan of 38 cm or 15 inch? Hi.
Worked DXCC's in the CQ WPX CW 2015 with an indoor 15" Cylinder dipole PA1B

Solar Eclipse WPA of WSPR spots by PE4BAS

Solar Eclipse WSPR Propagation Analysis (WPA) of spots by PE4BAS.
The spots were made on 160 mtr, during daylight hours.
The lower the Lowest Possible Power, the better the propagation.

woensdag 3 juni 2015

10 dB attenuators of Stefano IZ1OQU

On my Blog and website I show information, on how I work with QRP and QRPp and the use of attenuators for more than 1000 Miles per Watt QSO's.

Stefano IZ1OQU built a 10 dB attenuator, that I described in an earlier post. (Click to read) With this attenuator Stefano made QSO's with 50 milliwatt in SSB from his home over more than 2000 kilometers, using vertical antenna's.

With a difference of 13 dB between SSB and CW, the 50 mW in SSB can be compared with 2.5 mW in CW.
Congrats to Stefano, for this great achievement.

Stefano has recenly built a light weight attenuator with two sections of 10 dB. He wants to use the attenuator in SOTA and portable operation.
Here is the interesting e-mail from Stefano with photo's of the light weight attenuator.

Dear Bert,
I'm IZ1OQU Stefano. I wrote to you some months ago for the attenuators on your website.
With the 50 mW of the first attenuator that I built, I had my best Miles per Watt SSB QSO's with Finland, Russia and Georgia, over 2200 kms with the top-score of 2700 kms with Georgia:
54.000 kilometers per watt.

I'm writing again to show to you the new step attenuator that I've made: with switches and 2x 10 dB steps to reach the 5 mW output with my FT-817.
I attached some images of the new toy, made with pcb enclosure. I left one removable side just to shot some photos. You'll see, It's tiny (about 6x3x3 cms size) and low-weight. With that small space it was hard to solder everything but I did it!

I'll look forward to find ways to reduce again the size wile adding more steps but not before some testing: you know, SSB is not the best way to play MxW with such little power but I am still newbie with CW.

I keep following your blog, I shared it to some friends because they also like MxW, QRP and homebrewing things. The MxW comunity in Italy is slowly growing thanks to the WxM (watt per mile, or mile per watt... anyway we call it, it's the same thing) contest.
Go on with your good job

73 from Italy
Stefano IZ1OQU

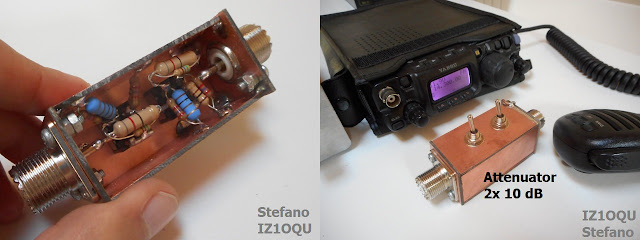

Light weight 2 x 10 dB attenuator IZ1OQU
Stefano will use the attenuator on SOTA and portable operation. FB.
To read more, visit Stefano's interesting QRZ page by clicking on the link.
